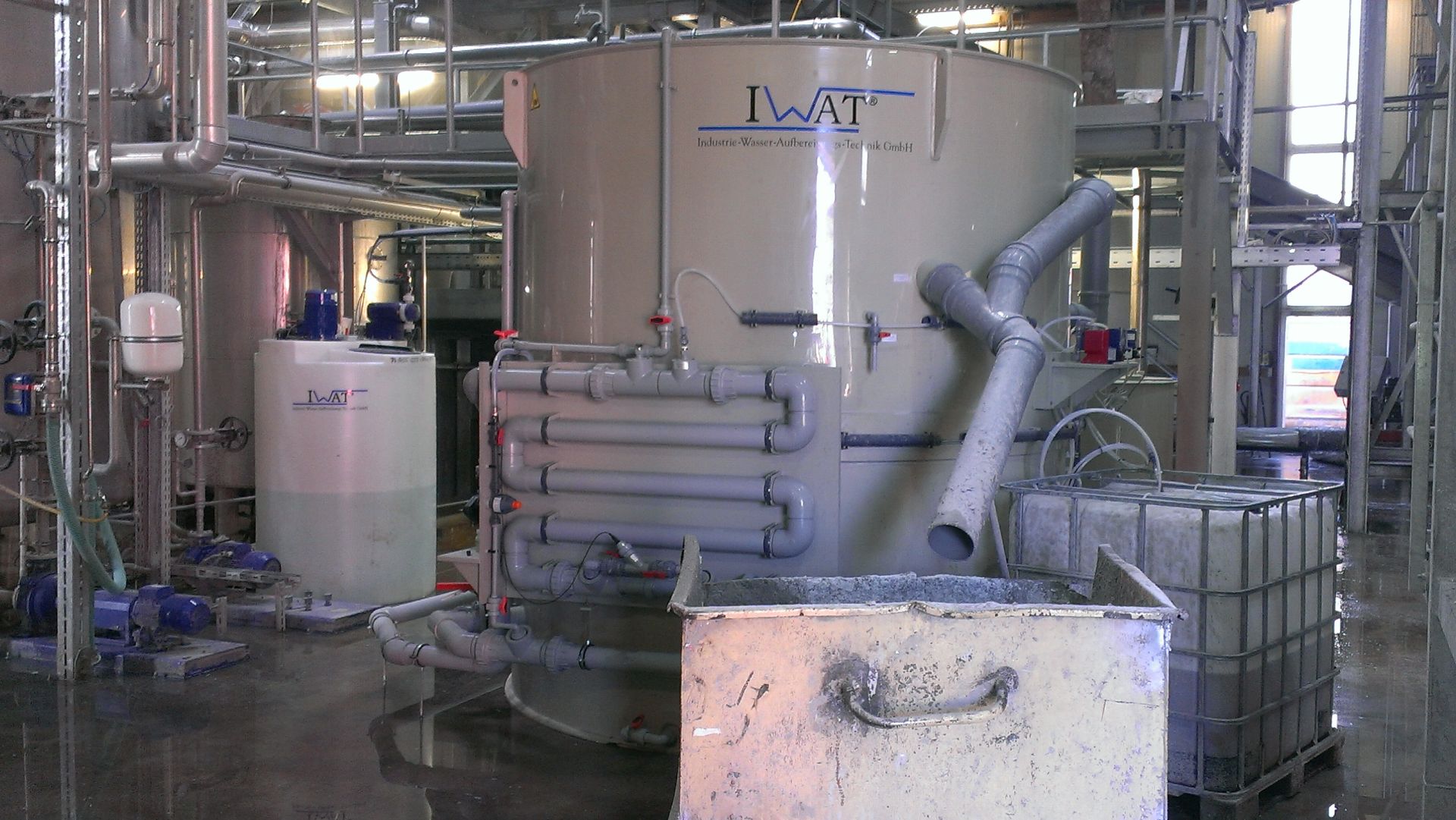

DAF-System
patented two-stage process:
1. stage: sludge discharge by conus construction (for compressed flocks) and a scraper
2. stage: large surface and air nozzles to support sludge discharge via an overflow
flotation plant with chemical station as well as measuring and control technology
good flow properties by tank construction without dead space
individual, compact construction
possible applications in meat processing, food industry, plastic recycling or metal processing

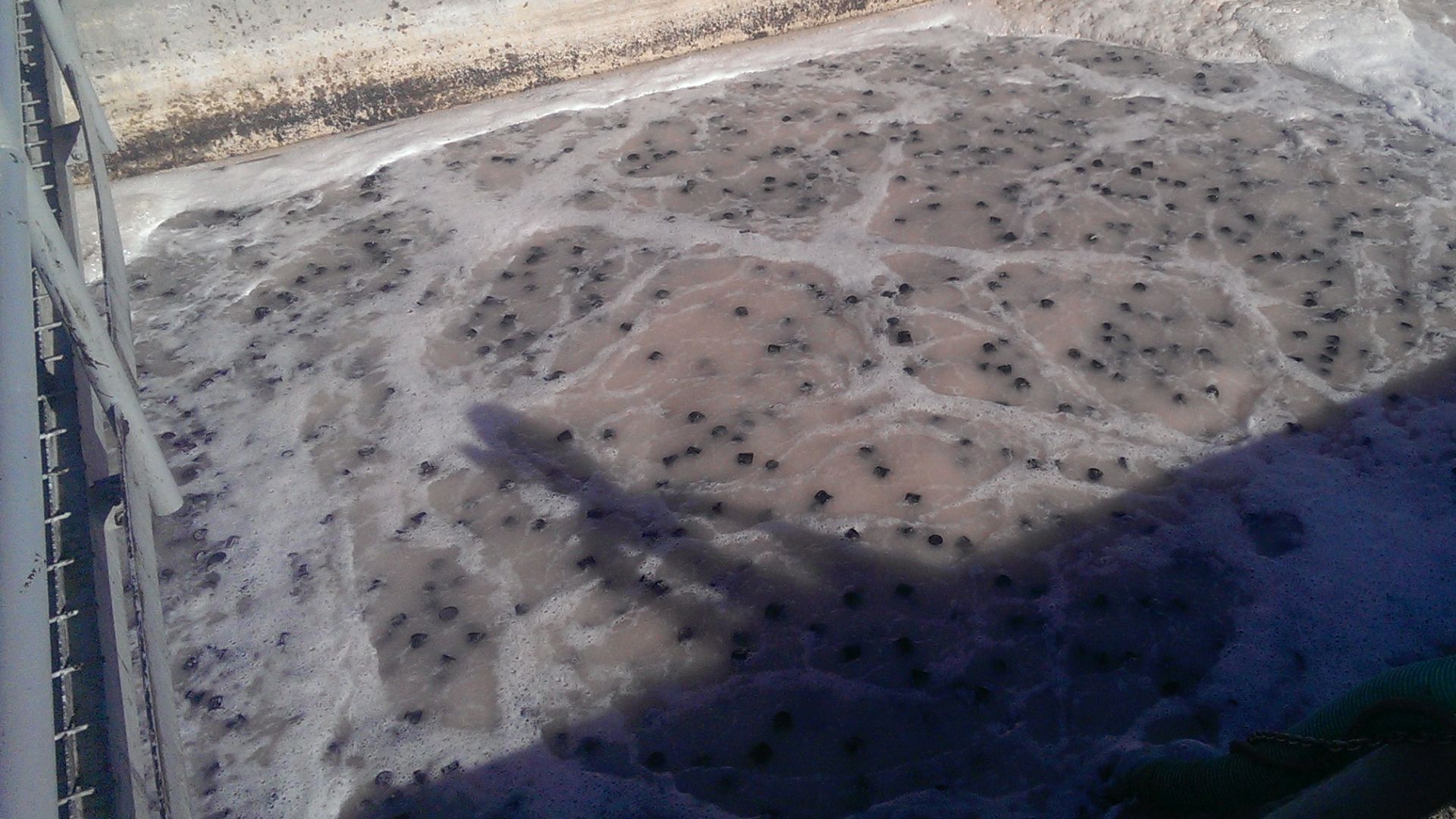

Moving-Bed-Biofilm-Reactor (MBBR)
free floating plastic packing serve as carrier material
in the packing’s protected growing area microorganisms form a thick biofilm
ingestion of microorganisms is the cleaning process of waste water
interval-ventilation ensures a sufficient supply of oxygen
Sequencing-Batch-Reactor (SBR)
Fixed-Bed-Reactor (FBR)
Fixed-Bed serves as carrier material for microorganisms
ingestion of microorganisms is the cleaning process of waste water
interval-ventilation ensures a sufficient supply of oxygen

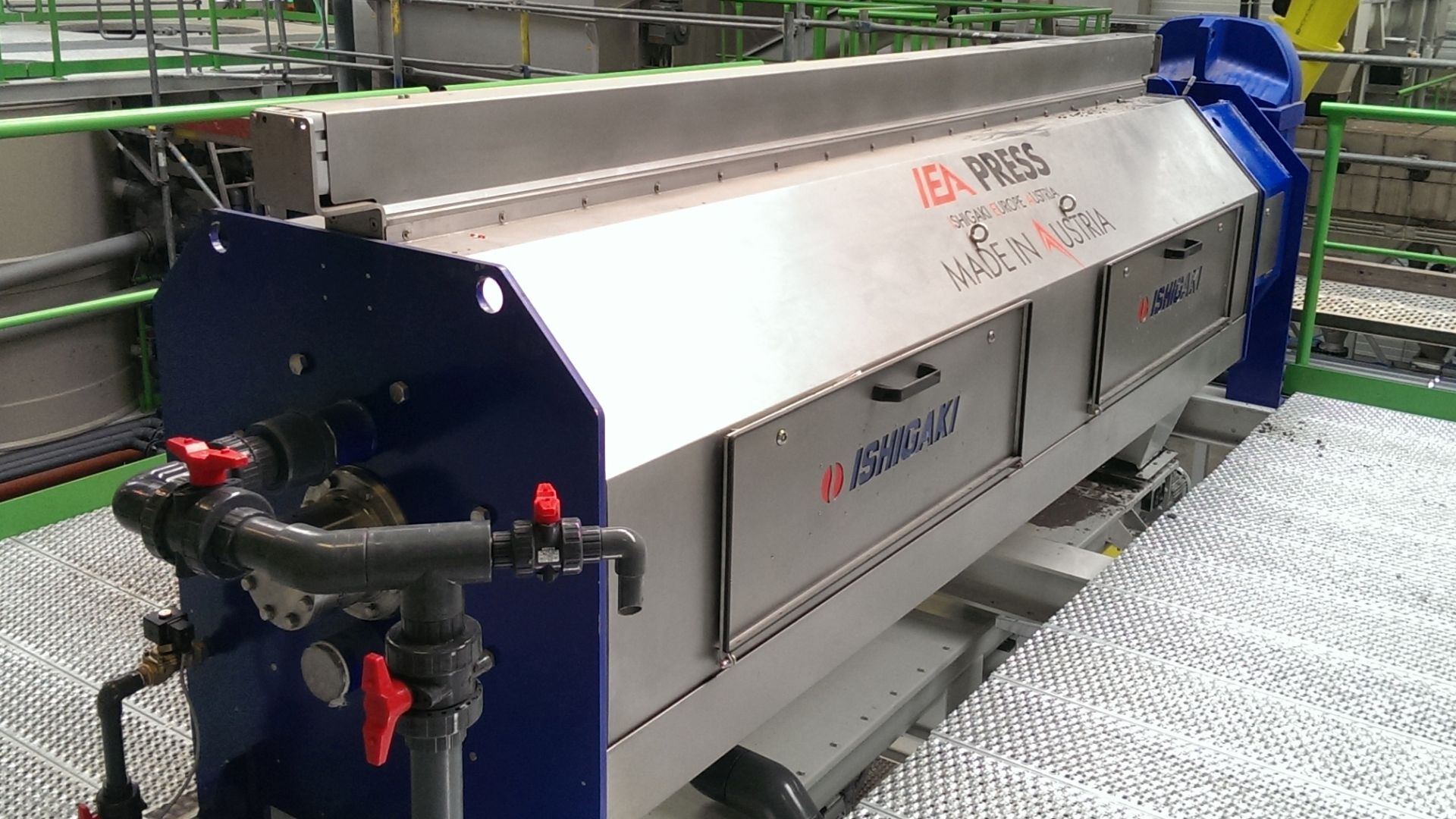

Screw press
continuous dewatering system
integrated washing equipment
high mechanical dewatering capacity at high flow-rates
minimal wear
long lifetime
replaceable screen inserts
low drive power
machine downtime when washing the machine is not necessary

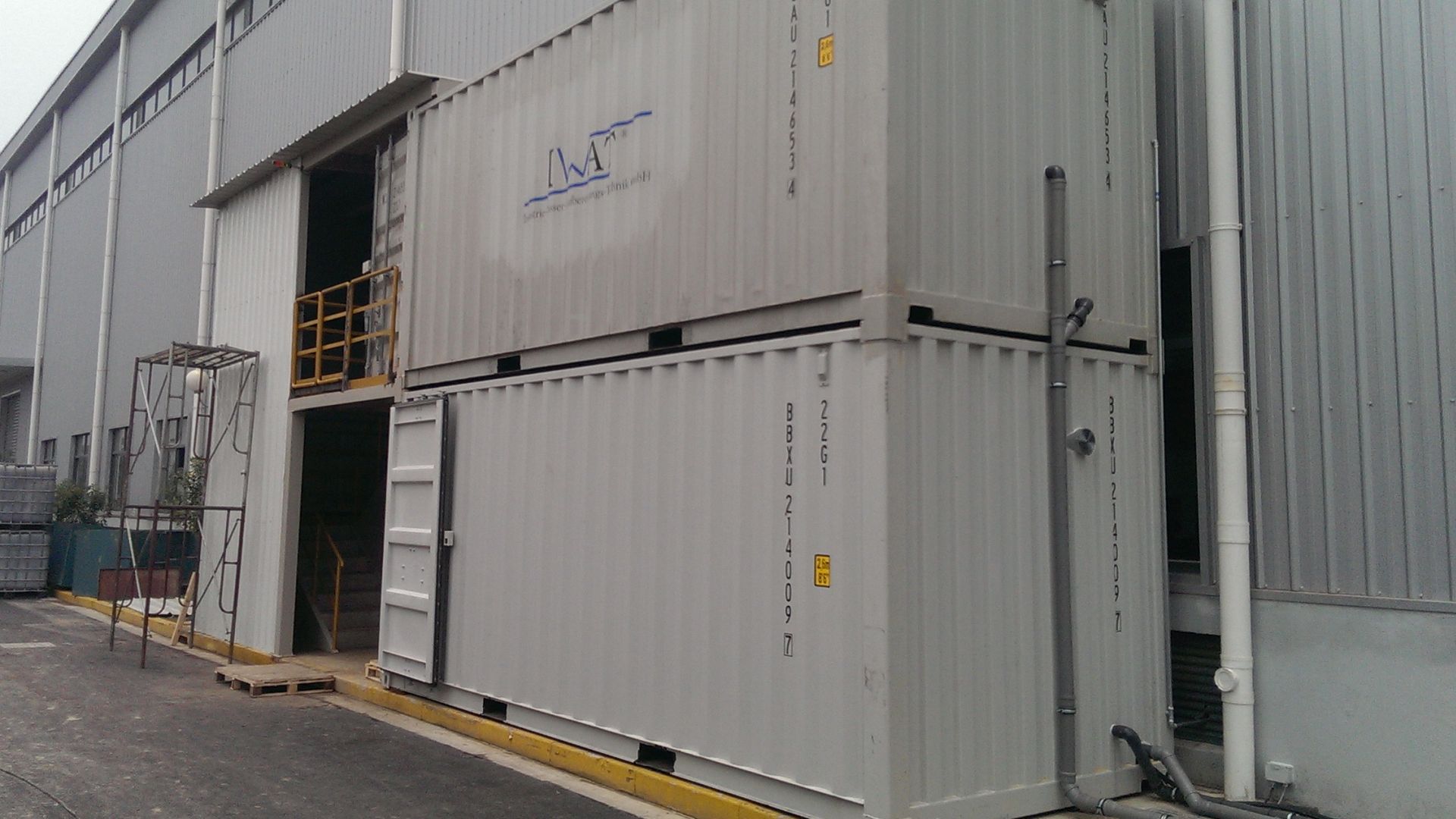

complete waste water treatment plant in container
turnkey handover
installation of the waste water treatment plant outdoors
space-saving stacking of two containers possible
global container shipping
